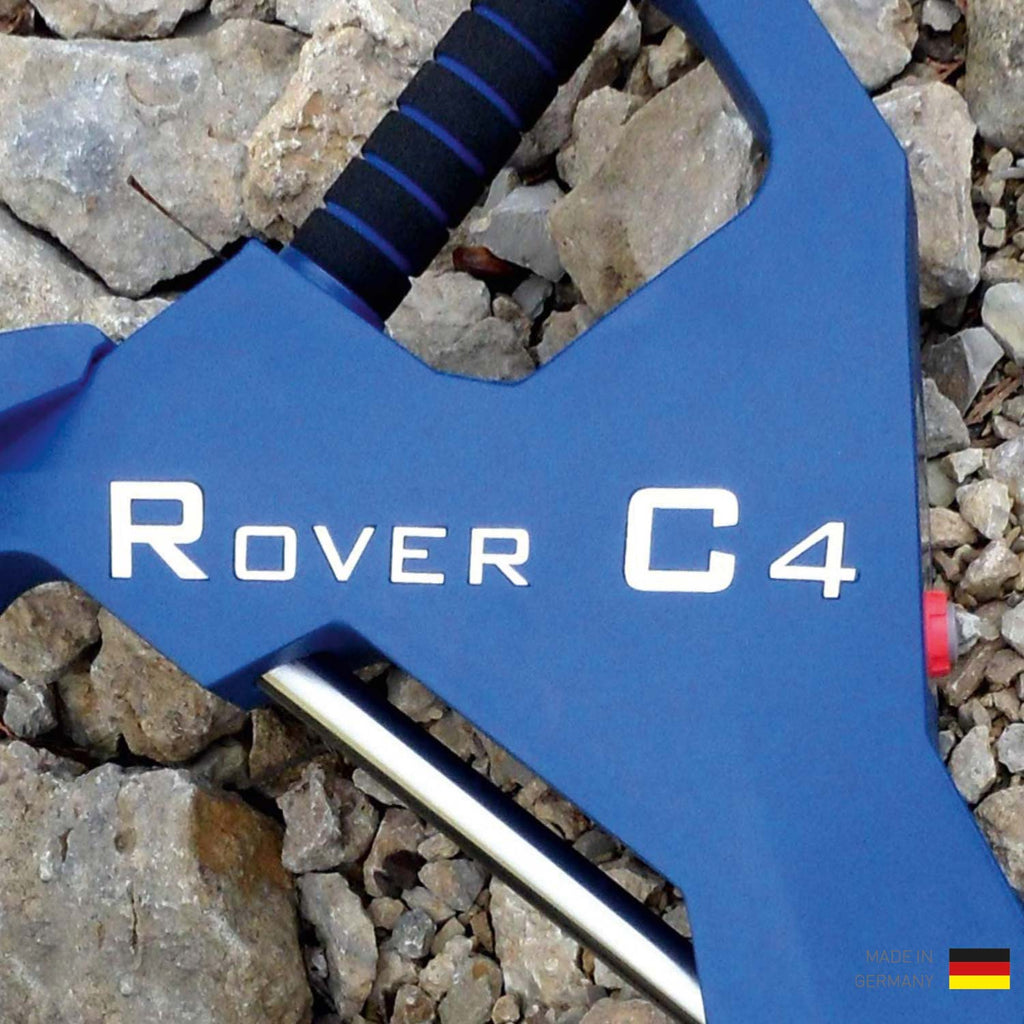

OKM Rover C4 (2017-2021)
07 يونيو 2021
This product has been updated. View the current product version: OKM Rover C4
- Bestseller: 3D ground scanner and metal detector
- Depth: Customers found objects to 25 m (82 ft) deep
- Use cases: treasure hunting, natural gold prospection
- Operating modes: Ground Scan, Pinpointer, Magnetometer, Mineral Scan
- Detectable objects: natural gold minerals, treasure chests, jewelry, militaria
Ground Scanner Rover C4 Features:
Use of Metal Detector OKM Rover C4:
Special Features of Rover C4
- Supported operating modes: Ground Scan, Pinpointer, Mineral Scan, Magnetometer
- Graphical user interface in many different languages
- Operational touchscreen with alternative hardware buttons
- Multilevel LED lighting for usage of the detector in darkness
- Wireless data transfer
- 4 separate memory areas to store measuring data
- Standard Probe and Super Sensor with innovative LED Orbit
| 1x | Control unit |
| 1x | Standard Probe with LED Orbit |
| 1x | Super Sensor with LED Orbit |
| 1x | Windows Tablet PC |
| 1x | Software Visualizer 3D Studio Standard Edition |
| 1x | Bluetooth headphones |
| 1x | Power Pack with charger and travel adapter |
| 1x | USB Bluetooth dongle |
| 1x | Waterproof and shock resistant Pelican case |
| 1x | Carrying tube |
| 1x | Quick Start Guide |
Control unit
- Dimensions (H x W x D): 390 x 300 x 140 mm
- Weight: about 1.5 kg
- Input voltage (max.): 11 – 13 V DC / 6 W
- Processor / Main CPU: Cortex M3, 32 MHz
- Processor / Slave CPU: Cortex M0, 24 MHz
- Display: 3.5” Resistive touch, 480 x 320 Pixel
- Display CPU: Cortex M3, 32 MHz, 128 KB RAM
- Data memory: 4 GB
- Sample rate: 1024 values / second
- Measurement resolution: 16 bit
- Operating temperature: –10°C – 60°C
- Storage temperature: –20°C – 70°C
- Audio: Internal speaker / Bluetooth
- Waterproof: No
- Air humidity: 5% – 75%
Standard Probe
- Weight: 0.4 kg
- Length: 445 mm
- Diameter tube / LED Orbit: 35 mm / 65 mm
- Technology: SCMI-15-D
Super Sensor
- Weight: 0.9 kg
- Length: 960 mm
- Diameter tube / LED Orbit: 50 mm / 65 mm
- Technology: SCMI-15-D
Data transmission
- Technology: Bluetooth
- Frequency: 2.4 – 2.4835 GHz
- Maximum Transfer Rate: 1 Mbps
- Receiving Sensitivity: –85 dBm
- Maximum Range: approx. 10 m
Computer minimum requirements
- CD-ROM drive: minimum 4x
- Interface (Data transmission): USB
- Free disk space: minimum 50 MB
- Working memory (RAM): minimum 256 MB
- Graphic card: minimum 128 MB, OpenGL-compatible
- Processor: minimum 1.2 GHz
- Operating system: Windows Vista, Windows 7, Windows 8, Windows 10
This product has been updated. View the current product version: OKM Rover C4
Rover C4 Quick Tutorial Transfer Scan Files
After performing your scans, transfer them to the Windows notebook via Bluetooth for further analysis.
